Timpte Brand Stake Pocket D-Rings
***All orders will be shipped out 3-12 business days from payment. Tracking information is automatically sent when labels are printed***
Always measure your stake pockets and compare your measurements to each of our offerings, as there are quite a few different sizes across different trailer brands. Many other offerings are available under the products page of our website.
Please read the entire post, as these are specific to Timpte Brand aluminum trailers ONLY, with a specific stake pocket dimension that measures 3-1/2" wide X 1-1/2" deep X 4-3/4" tall. These stake pockets are substantially taller than a conventional 3" tall stake pocket.
Have a Timpte brand aluminum trailer? Does it have unconventional sized stake pockets? Then we have the correctly sized stake pocket d-rings for you! Timpte brand trailers use a proprietary sized extrusion for the stake pockets on their aluminum trailers and we've got a stake pocket d-ring mounts sized specifically to fit them.
PLEASE DOUBLE CHECK AND MEASURE YOUR STAKE POCKETS TO ASSURE PROPER FITMENT. IF YOU HAVE ANY QUESTIONS FEEL FREE TO EMAIL US BEFORE ORDERING AND WE'LL GET YOU WHAT YOU NEED.
They are also made out of the same, USA-made 1/4” 1018 formed steel with forged d-rings as our conventional tie downs. All the plates are CNC plasma cut, CNC formed and hand welded in-house. If a powder coat finish is chosen, we degrease, sandblast and powder coat in-house as well. This allows us to maintain our strict quality standards, from raw material to finished product.

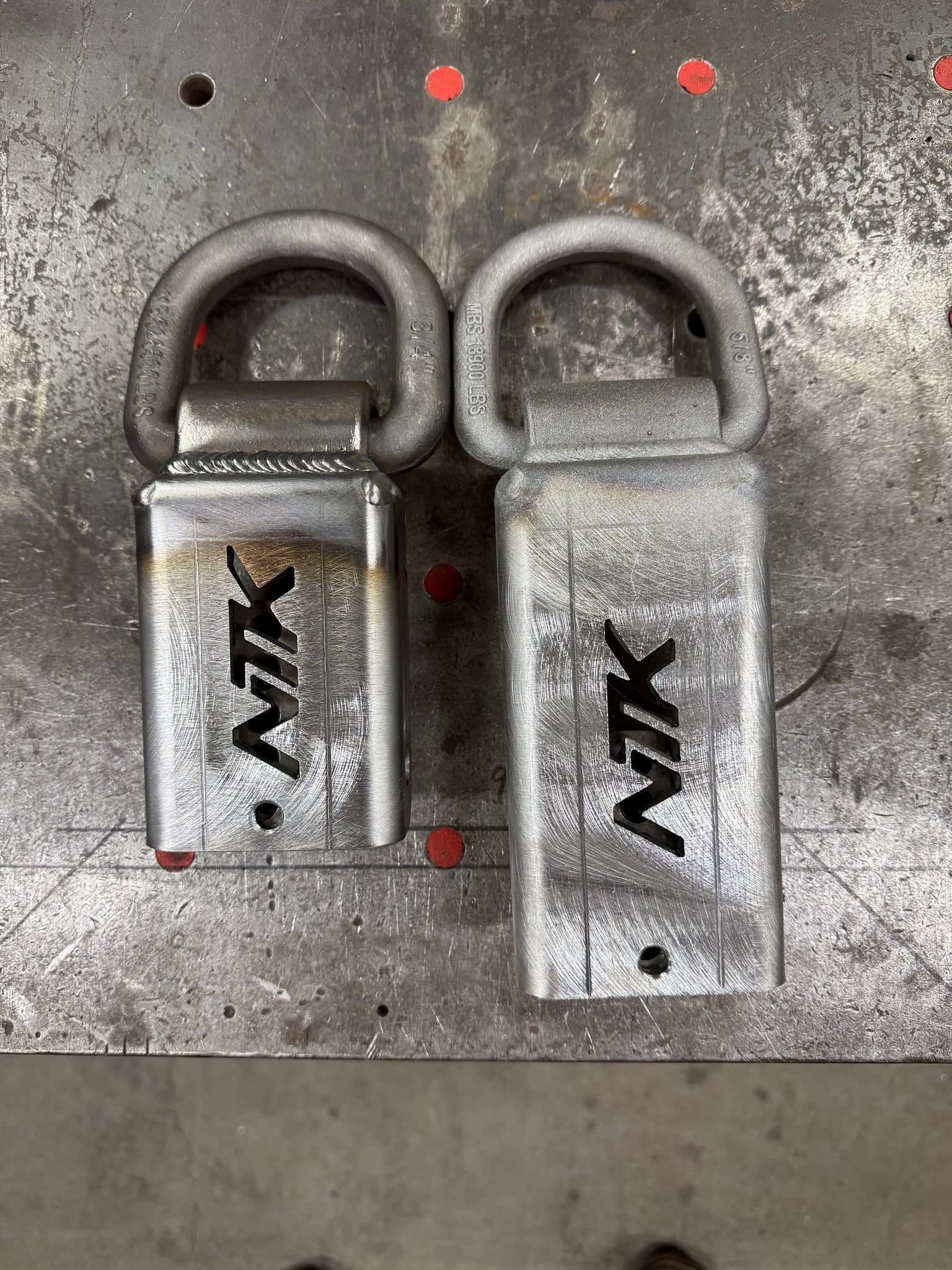

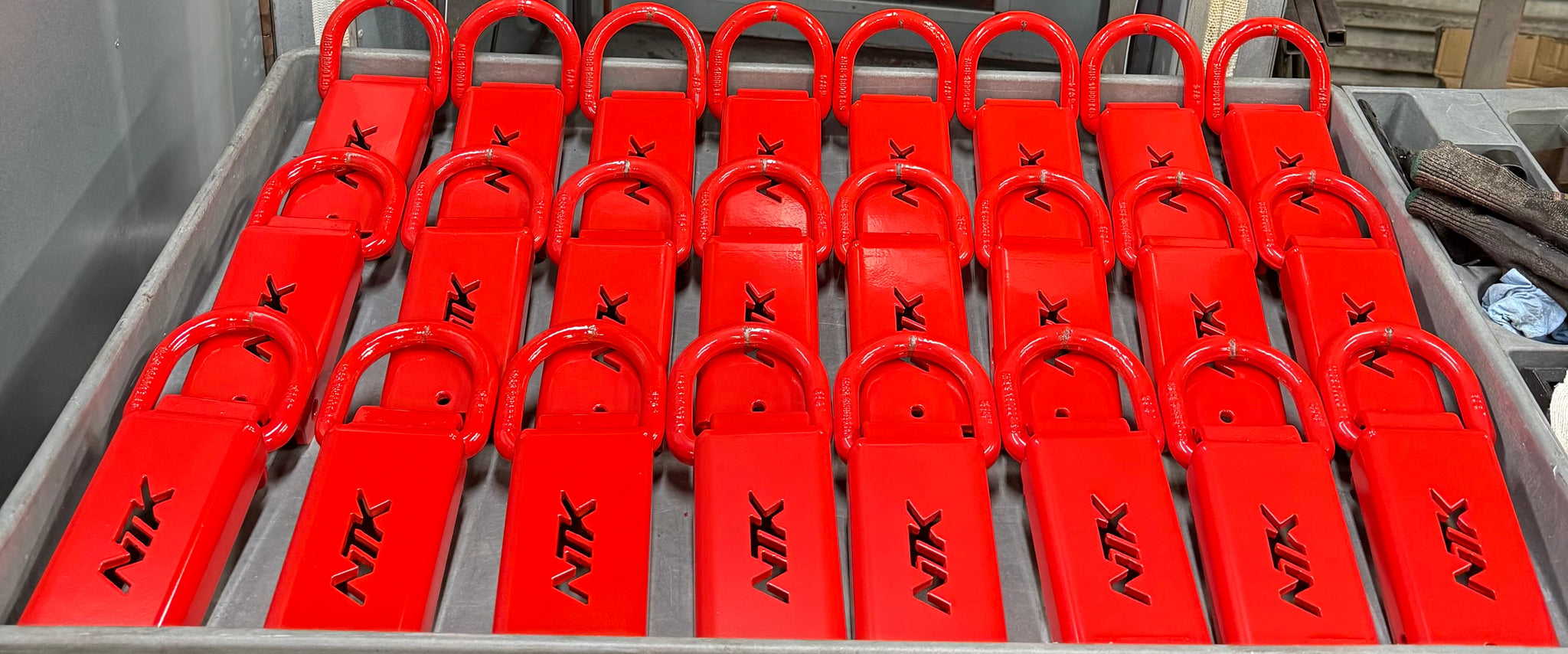

In the product pictures are a few examples of the powder coat colors we offer(other variants of course) and a size comparison with these and our shorty style tie down, which is designed for a conventional 3" tall stake pocket.
Ring sizes are offered in 3 sizes as follows:
The 1/2” rings that are used have a 4,000lb working load limit and a 12,000lb minimum break strength.
The 5/8” rings that are used have a 6,000lb working load limit and an 18,000lb minimum break strength.
The 3/4” rings that are used have a 9,000lb working load limit and a 26,500 minimum break strength.

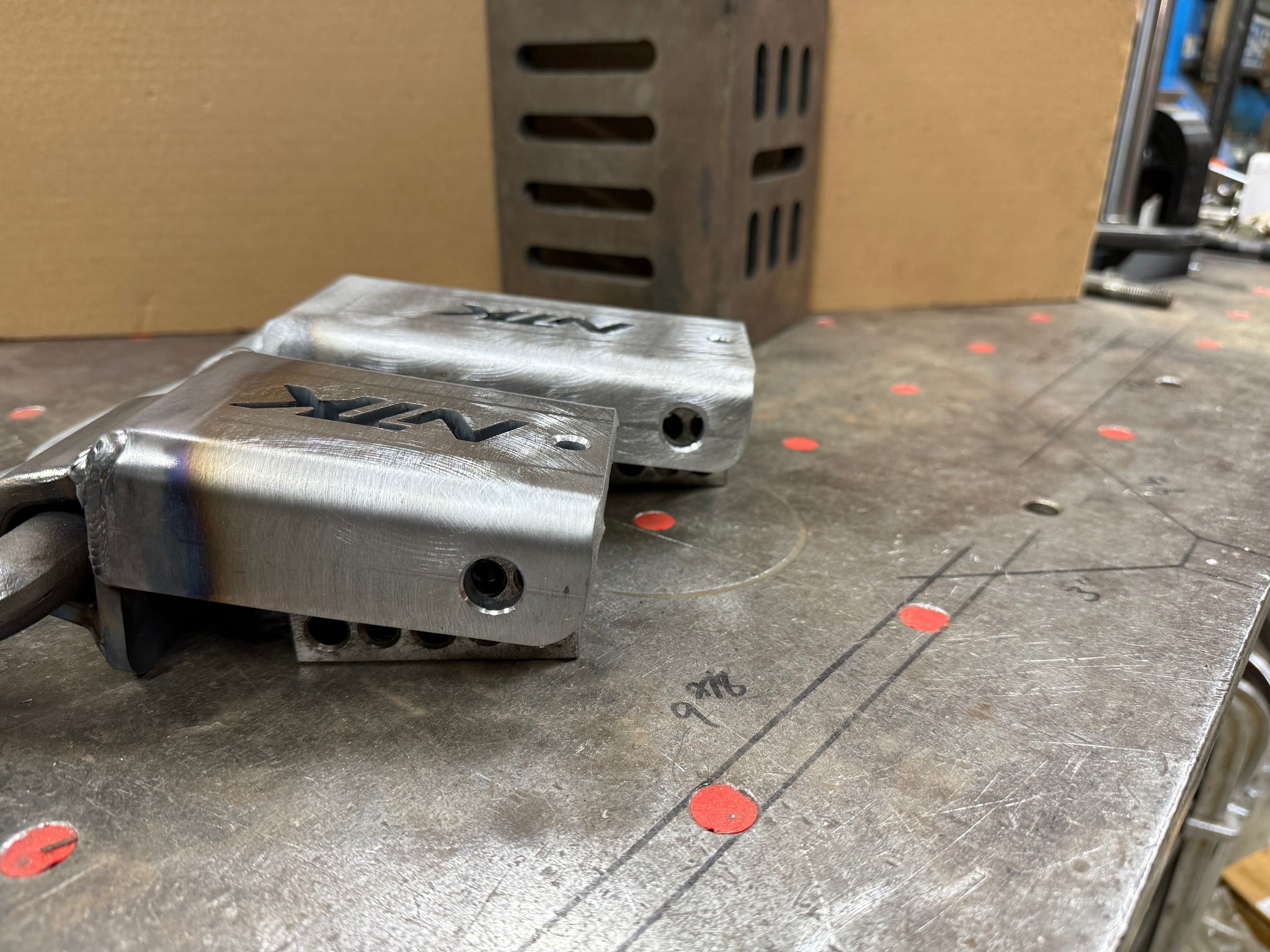

An anti-theft option for them has also been asked for, so now all stake pockets from here on out(June 2020), will have a hole on the bottom edge to accept a Masterlock. While we feel the lock isn’t the end all, be all for theft, as cordless grinders are readily available nowadays, it’s simply more of a deterrent than anything. Whether you choose to utilize the hole or not, is totally up to you, but we’d rather see the option be available for you(The locks pictured are a $15/pair from Lowe’s, cheap insurance)
These all come with a 1/2"” hitch pin(and hairpin clip, also both USA made) to retain the mount in the stake pocket.
Thrifty Garage on YouTube did a comparison review of a handful of different stake pocket d-rings. We’ve since started sandblasting before powder coating, to alleviate the chipping of the coating. Here’s his video:
https://youtu.be/3983I7edYOY
*****It’s up to you the consumer to do your homework and choose the proper ring size for the load you are restraining and your local/state/federal DOT guidelines!! You are using these at your own risk*****
***SOLD AS PAIRS—-QUANTITY OF 1 EQUALS 2 MOUNTS***
Effective 3/12/2020, all tie downs will no longer be painted, but will now be sandblasted and powder coated in-house.
All powder coated orders are bubble wrapped to protect the coating and raw steel rings are shrink wrapped together. Boxes are taped around all 6 sides. Some scratches may be present upon delivery, as USPS is sometimes known to handle with the least amount of care.
